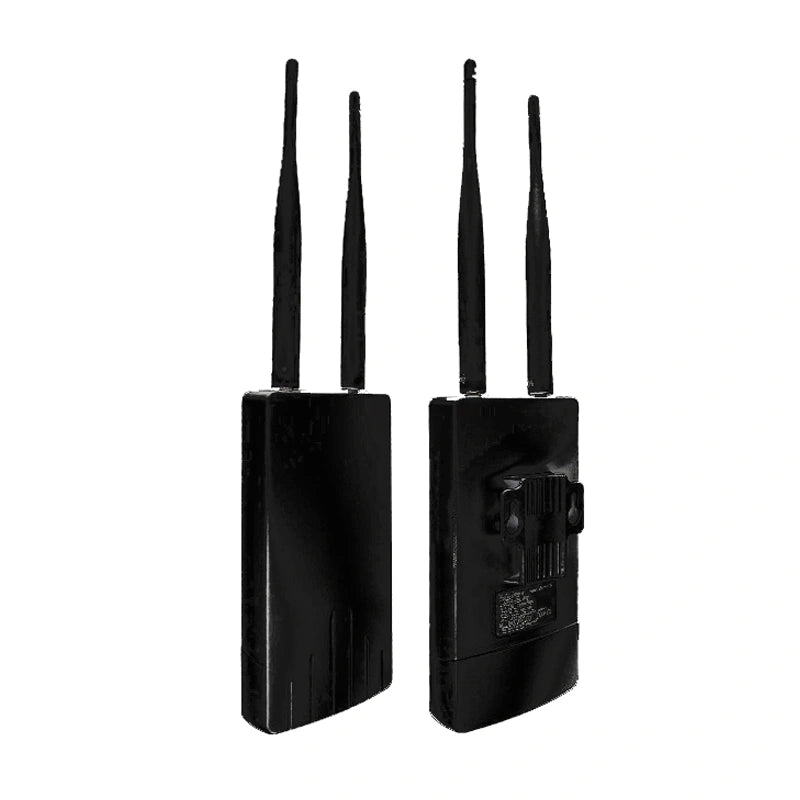

AC1200 WiFi 5 Outdoor IP67 WiFi Access Point with Active POE Power

Outdoor Dual-Band Wi-Fi Access Point
Engineered for challenging environments, this high-performance outdoor access point delivers seamless dual-band Wi-Fi coverage across distances up to 200 meters. With an IP67-rated rugged enclosure, passive/active PoE support, and flexible multi-mode operation, it provides a reliable networking solution for yards, worksites, warehouses, and other open or harsh outdoor settings.

Key Features at a Glance

• True All-Weather Design: IP67-certified housing ensures reliable operation in rain, snow, dust, and extreme temperatures (–10°C to 50°C), with 6kV lightning and 15kV ESD protection.

• Flexible Power & Data via PoE: Supports both passive and active PoE, enabling single-cable installation for power and network connectivity in locations without electrical outlets.

• Dual-Band High Speed: Offers total wireless speeds up to 1167Mbps (2.4GHz: 300Mbps + 5GHz: 867Mbps), ideal for HD video streaming and multiple connected devices.

• Four Operation Modes: Functions as an access point, router, repeater, or hybrid AP+repeater to fit varied network expansion needs.

• Extended Outdoor Coverage: Delivers stable Wi-Fi over a wide area up to 200 meters, supporting connections for up to 32 users simultaneously.

• Wireless Performance
  ◦ Dual-Band Aggregate Speed: 1167Mbps
  ◦ 2.4GHz Band: 300Mbp
  ◦ 5GHz Band: 867Mbps

• Environmental Durability
  ◦ IP67 Weatherproof & Dustproof
  ◦ Operating Temperature: –10°C to 50°C (14°F to 122°F)
  ◦ 6kV Lightning Protection, 15kV ESD Protection

• Wired Connectivity
  ◦ Integrated Passive/Active PoE (via RJ-45)

• Operation Modes
  ◦ AP, Router, Repeater, AP+Repeater Mode

• Coverage & Capacity
  ◦ Max Signal Range: 200 meters
  ◦ Supports up to 32 connected devices
