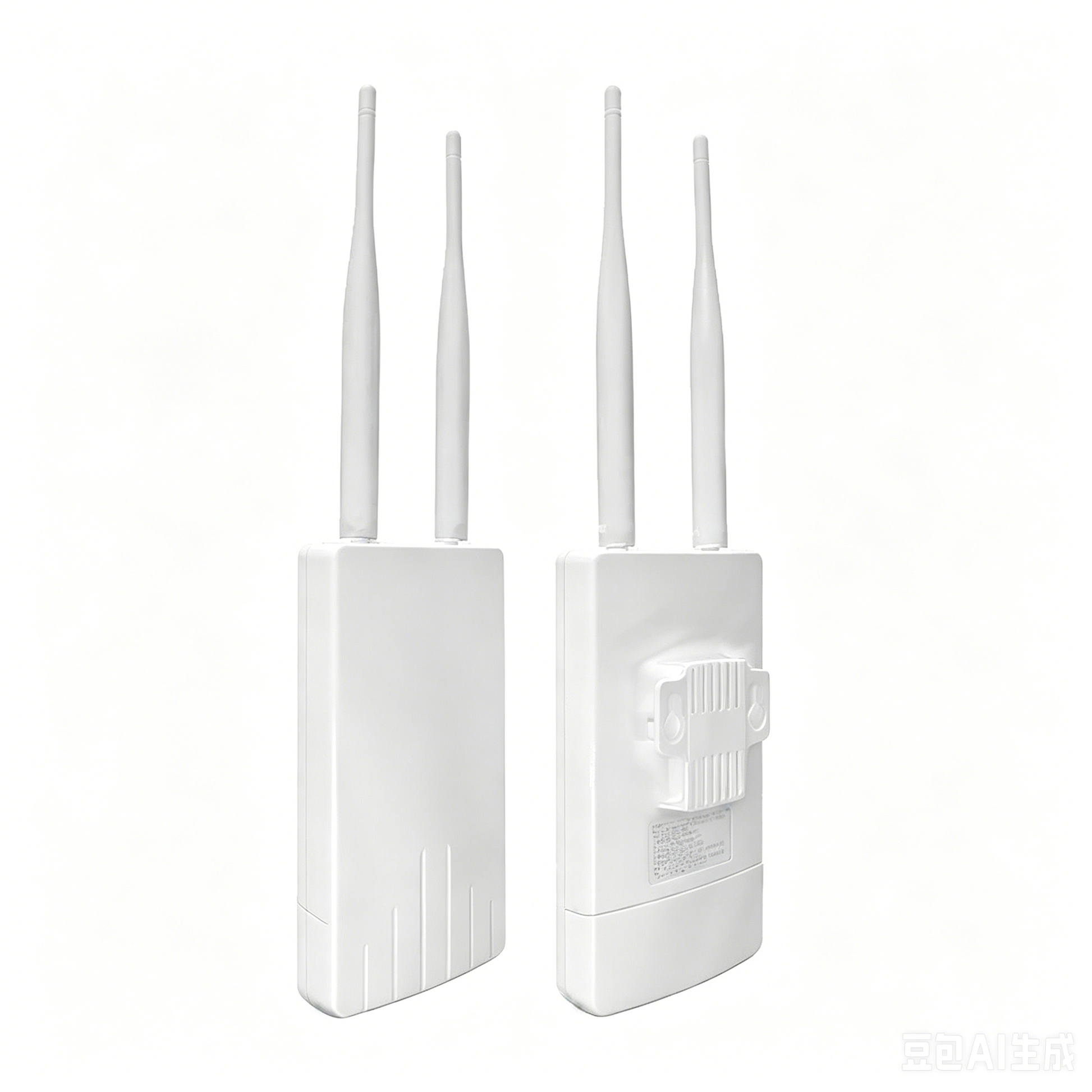

AC1200 IP67 Outdoor WiFi Access Point with Active POE

AC1200 IP67 Outdoor WiFi Access Point with Active POE

  • All-Weather Resilience — IP65/IP67 weatherproof housing delivers stable performance outdoors, equipped with 15kV ESD and 4kV lightning surge protection against harsh climate and electrical interference.
  • Stable Dual-Band Wi-Fi Performance — Compliant with IEEE 802.11ac/a/b/g/n standards, reaching total wireless speed of 1167Mbps (300Mbps for 2.4GHz + 867Mbps for 5GHz) with transmission power up to 1000mW.
  • Flexible Passive PoE Deployment — Powered by 24V/0.5A passive PoE, enabling one-cable transmission of power and data for easy installation at sites lacking power sockets.
  • Wide Coverage & Smooth Mesh Networking — Comes with 2 detachable 7dBi omnidirectional antennas, supporting Easy Mesh to achieve full-range coverage and seamless cross-device roaming.
  • Versatile Working Modes & Complete Security — Features AP, Repeater, Mesh and Router modes to fit diverse networking demands, alongside WPA/WPA2/WPA3 full wireless encryption to safeguard network data.

Full Customization Service

Wavotec delivers comprehensive OEM & ODM customization covering appearance design, functional parameter adjustment and exclusive software configuration. Our one-stop technical support covers all customized development procedures to create exclusive brand products tailored to your unique business demands.
For volume orders or business inquiries contact sales@wavotec.com

Product Inquiry

✅ Inquiry Submitted Successfully!

Thank you! We will reply to you within 24 hours.

Alternatively, you can also contact us via email: wayne@wavotec.com

查看完整資訊
Expand long-distance outdoor WiFi coverage with this heavy-duty dual-band outdoor AP built for harsh climates. With IP65/IP67 weatherproof housing, 15kV ESD & 4kV lightning protection and four detachable 7dBi omnidirectional antennas, it delivers steady 1167Mbps lag-free connectivity for yards, construction sites and campuses in all weather.

Designed for large outdoor deployments, it comes with 1 Gigabit WAN + 1 Fast LAN port and supports 24V/0.5A passive PoE for easy wiring without extra adapters. Compliant with 802.11ac/a/b/g/n standards, it hits combined 1167Mbps speeds (300M 2.4G + 867M 5G) with 1000mW max transmit power. It supports AP/Repeater/Mesh/Router modes, Easy Mesh and full WPA3 encryption to maintain stable, secure connections under heavy load.

Ideal for residential yards, worksites and campuses, this rugged outdoor AP eliminates environmental interference and delivers consistent high-speed wireless for all long-range outdoor networking needs.
Build reliable long-distance outdoor wireless networks with this IP65/IP67 dual-band outdoor access point. It features rugged weather-resistant casing, passive PoE single-cable installation, high-power dual-band WiFi, mesh roaming and multi-mode operation, ideal for farms, parking lots, scenic areas and outdoor commercial venues. Check its core competitive advantages below:

Feature ItemCore Advantages
Industrial All-Weather ProtectionIP65/IP67 waterproof and dustproof enclosure maintains stable outdoor operation, built with 15kV ESD and 4kV lightning surge protection to resist extreme weather and electrical signal interference.
1167Mbps High-Power Dual-Band WiFiFully compliant with IEEE 802.11ac/a/b/g/n protocols, total dual-band speed hits 1167Mbps (300Mbps 2.4GHz + 867Mbps 5GHz), with maximum transmit power up to 1000mW for far-reaching signal delivery.
24V Passive PoE Single-Cable InstallationSupports 24V/0.5A passive PoE power supply, realizing simultaneous power and data transmission via one network cable, simplifying construction for sites without reserved power outlets.
7dBi Omni Antennas & Easy Mesh RoamingEquipped with 2 detachable 7dBi omnidirectional antennas; Easy Mesh technology enables full-area seamless coverage and smooth cross-device roaming under one unified SSID.
4-Way Operation Modes & Full Security EncryptionSupports AP, Repeater, Mesh and Router modes to adapt to all outdoor networking scenarios; complete WPA/WPA2/WPA3 multi-protocol encryption fully protects your wireless network data privacy.
Wireless Performance
· Total Combined Speed: 1167Mbps
· 5GHz Band: 867Mbps
· 2.4GHz Band: 300Mbps
· Standard: IEEE 802.11ac/a/b/g/n
· Max Transmission Power: 1000mW

Hardware Configuration
· 2 x Detachable 7dBi Omni Antennas
· IP65/IP67 Weatherproof Housing
· 15kV ESD & 4kV Lightning Surge Protection
· Built-in High-Power PA Module

Wired Connectivity
· 1 x 10/100/1000Mbps Auto-Adaptive WAN/LAN Port
· PoE Standard: 24V Passive PoE Power Supply

Function & Security
· Modes: AP / Repeater / Mesh / Router
· Support Easy Mesh, Seamless Roaming & Wide Coverage
· Full Encryption: WPA/WPA2/WPA3
